Axial Mass Transport by Reciprocating Flow in
Branching Tube Network (Understanding of Gas Exchange Mechanism in Conducting
Airways of Human Lung and Application to High Performance Heat/Mass
Exchangers)
Human lung consists of branching tube network, and
respiration causes oscillating flow with which very efficient gas exchange is
performed. We are studying the axial mass transport phenomena caused by the
oscillating flow in order to understand the mechanism of the phenomena and also
to apply the mechanism to the high performance heat/mass exchangers.

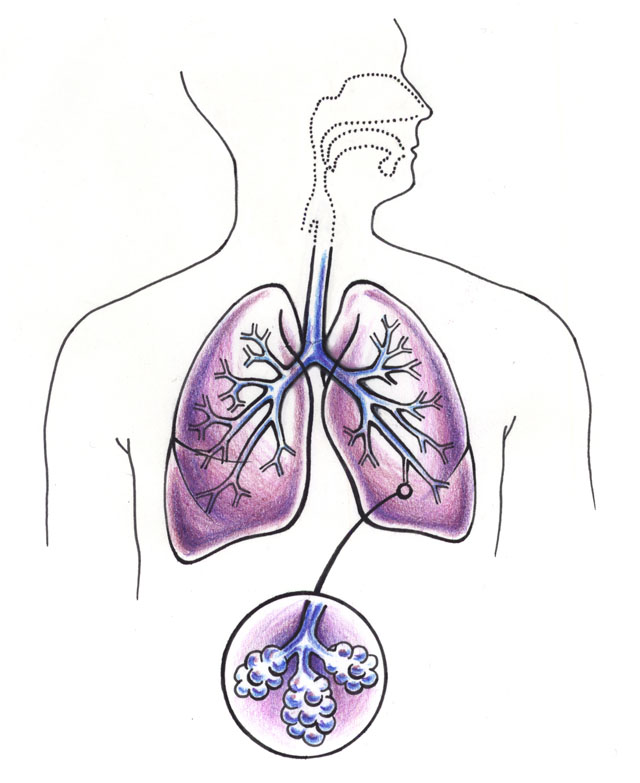

Schematic of human
lung.
|
Flow
visualization result of oscillating flow in branching (left) and straight (right) tubes
by using dye injection method [1]. |

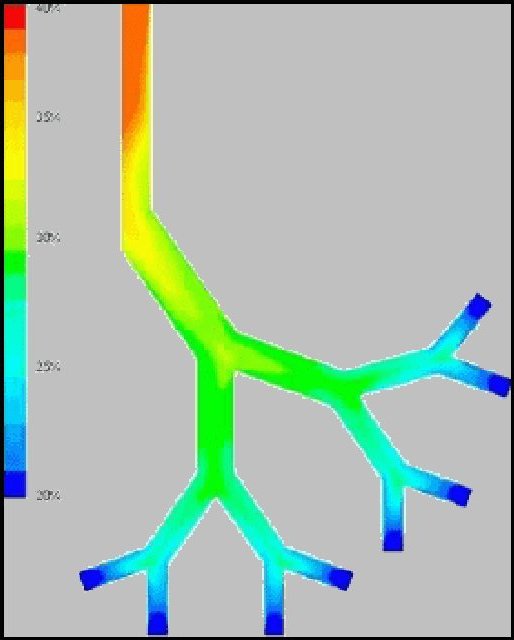

3-D numerical result of oscillating flow in branching
tube network by using finite volume
method. |
References
[1] Mochizuki, S., Togashi, Y., Murata, A., and W.-J., Yang, Vizualization
Experiment of Mass Transport in Pulmonary Ventilation inside Bronchial
Tube Model, Journal of Mechanics in Medicine and Biology, Vol. 1, No. 2(2001),
pp.181-192.
|
